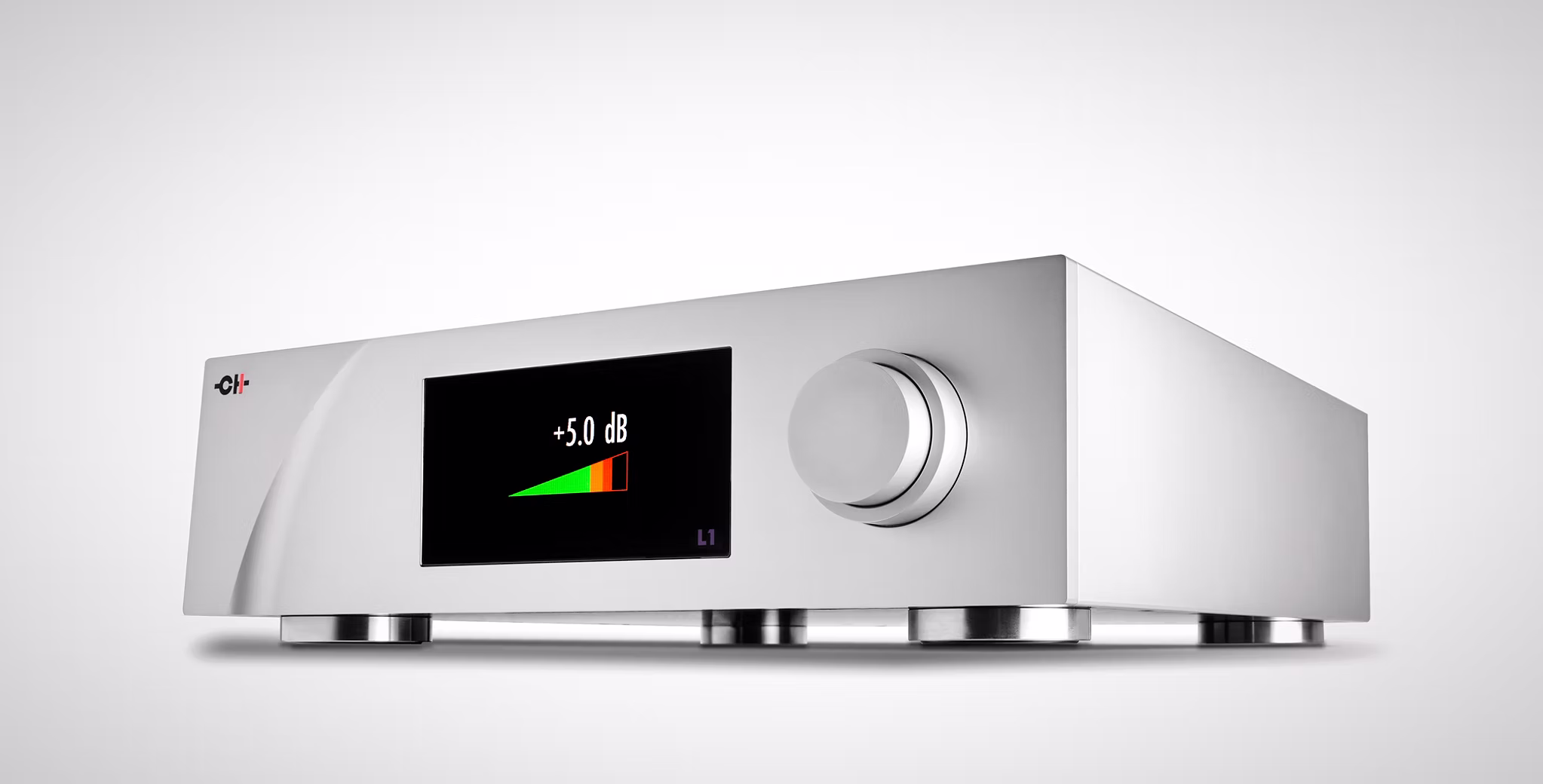

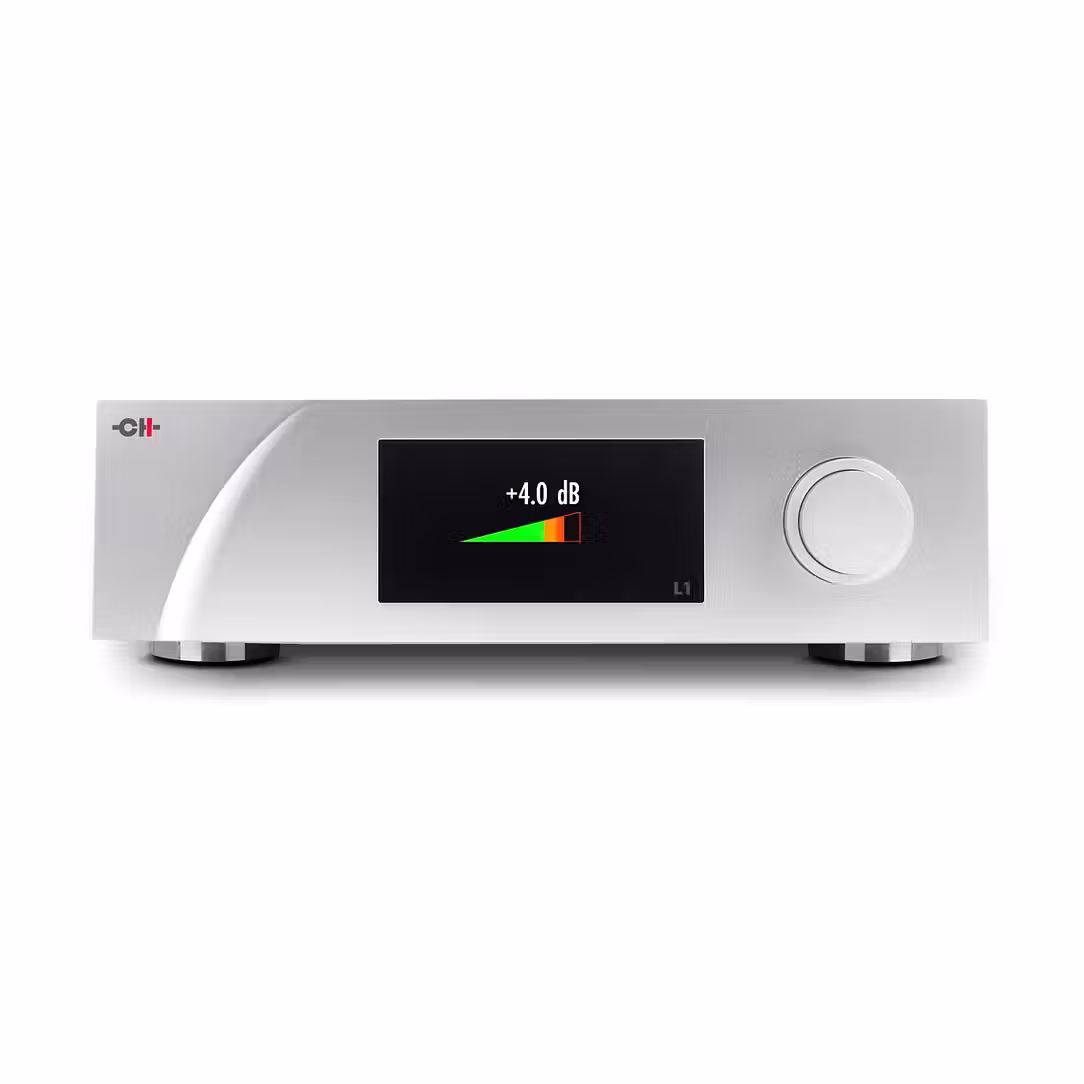

L1 Line Preamplifier

Although many digital manufacturers now encourage connecting their devices directly to a power amplifier bypassing a line preamplifier altogether the pursuit of truly uncompromised performance tells a different story. For those assembling a system capable of revealing everything embedded in a recording (from tonal nuance and dynamic expression to bass extension and spatial resolution) there is no substitute for a world-class line preamplifier. It is the center of gravity in any high-performance system the point at which signals are not just managed but preserved stabilized and elevated. A great line preamplifier doesn’t draw attention to itself it removes itself from the equation allowing the music to emerge unimpeded. This is the role the CH Precision L1 Line Preamplifier was built to fulfill.

Engineered to be both sonically and musically invisible the L1 preserves the full integrity of every signal it encounters. Its discrete balanced dual-mono architecture—supported by an ultra-low noise floor and continuous DC-offset monitoring—delivers the transparency stability and dynamic authority that come only from uncompromised control of the signal path. What distinguishes the L1 is not what it adds but what it never imposes. It anchors performances with composure clarity and unforced control making it foundational rather than ancillary within a CH Precision system.​

At its core the L1 employs a rigorously executed dual-monaural design with fully independent left and right channels. Each of its eight selectable inputs—balanced XLR single-ended RCA and 75-ohm BNC—feeds a path optimized for low noise wide bandwidth and exceptional dynamic linearity. Whether driving long cable runs or multiple amplifiers the L1 maintains unwavering stability preserving musical timing texture and spatial coherence.

​Its discrete pure Class A circuitry maintains a fully symmetrical topology allowing signal to pass without imprinting a sonic fingerprint. Switchable absolute phase and mono modes support system optimization while the robust output stage ensures authoritative control in complex installations. Volume control is handled by a high-resolution 20-bit R-2R ladder network built from precision-matched metal-film resistors. Offering 118 dB of usable range in 0.5 dB steps this purely analog solution preserves resolution and tonal balance at any level—avoiding the losses and artifacts common to digital attenuators or IC-based schemes. Dedicated low-noise linear regulators with local shunt regulation supply the audio stages ensuring ideal interference-free operating conditions throughout the signal path

The L1 Line Preamplifier is built on a foundation of ultra-low-noise fully discrete and meticulously regulated linear power supplies. But even with this internal sophistication there is no such thing as too much isolation from the noisy RF-polluted environment of the AC mains. Adding the X1 External Power Supply introduces a further layer of voltage regulation noise filtration and mechanical decoupling dramatically lowering the noise floor and stabilizing the DC supply with a precision that far exceeds what’s possible inside a single chassis.

​For the L1 the result is nothing short of transformative. With the X1 in place the line preamplifier exhibits even greater composure and control. Microdynamic shading becomes more nuanced tonal textures take on new dimensionality and spatial cues emerge with enhanced clarity and definition. Transient response sharpens while musical flow becomes more effortless and fluid. The X1 doesn’t just enhance the L1’s performance it reveals the full expressive potential of the system allowing the listener to hear further into each recording with a sense of intimacy and realism that is unmistakably CH Precision.

Like all CH Precision components the L1 Line Preamplifier was designed not just for excellence today but for continued relevance and refinement over time. Its modular architecture allows owners to evolve the system as their needs or ambitions grow without ever departing from the platform’s core principles of precision balance and musical integrity.​

The first step in that evolution is the transformation from dual-monaural to true monaural operation. By adding a second L1 enclosure the left and right channels are physically and electrically separated into their own dedicated chassis eliminating crosstalk and enhancing channel isolation to an extraordinary degree. The sonic benefits are immediate: improved image focus greater dynamic freedom and a heightened sense of dimensionality and flow.​

For more complex systems each enclosure can also be fitted with an optional second analog board doubling the available inputs from 8 to 16. Whether accommodating multiple sources fine-tuning for system symmetry or simply pushing deeper into the performance envelope the L1’s upgrade path offers a seamless route to refinement without compromise without obsolescence.

Its structure follows the same operational logic as the componentsthemselves preserving a direct relationship between front-panel control and the mobile experience. True to CH Precision’s engineering culture the control platform is designed as an extension of the component architecture rather than a separate control layer. It adds convenience and flexibility while preserving the integrity precision and musical priorities that define every CH Precision system.
